Estructura Script
Provisional content: to be reviewed and completed with the text from the current website.
Easily customise your structures using Basic scripting
How many times have you needed to create geometries that are difficult to enter, but which would have been very easy if you could generate them from formulas, or even by importing the data from an Excel spreadsheet?

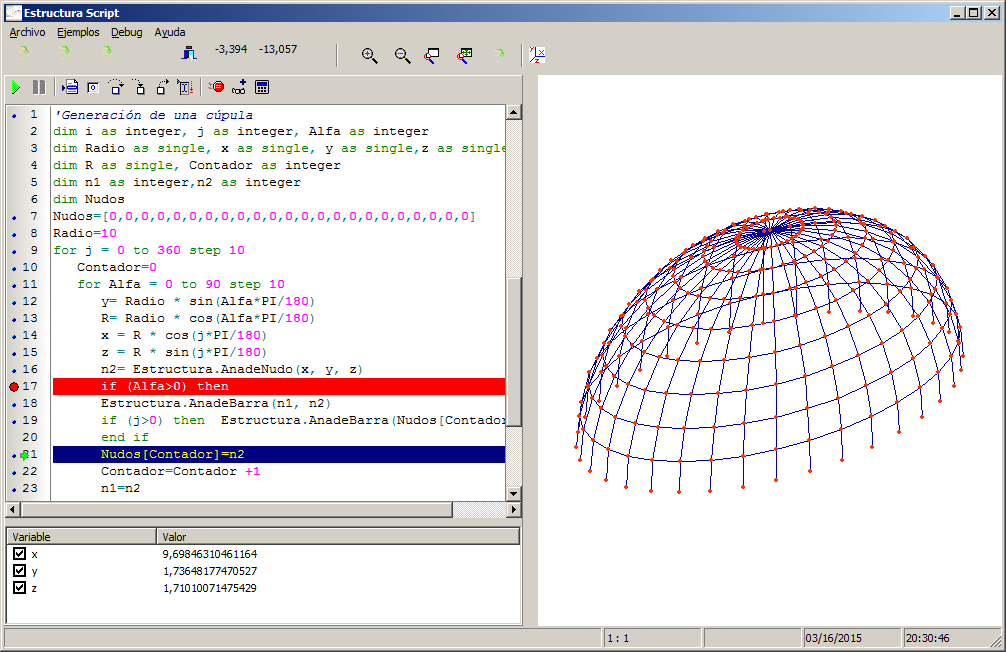

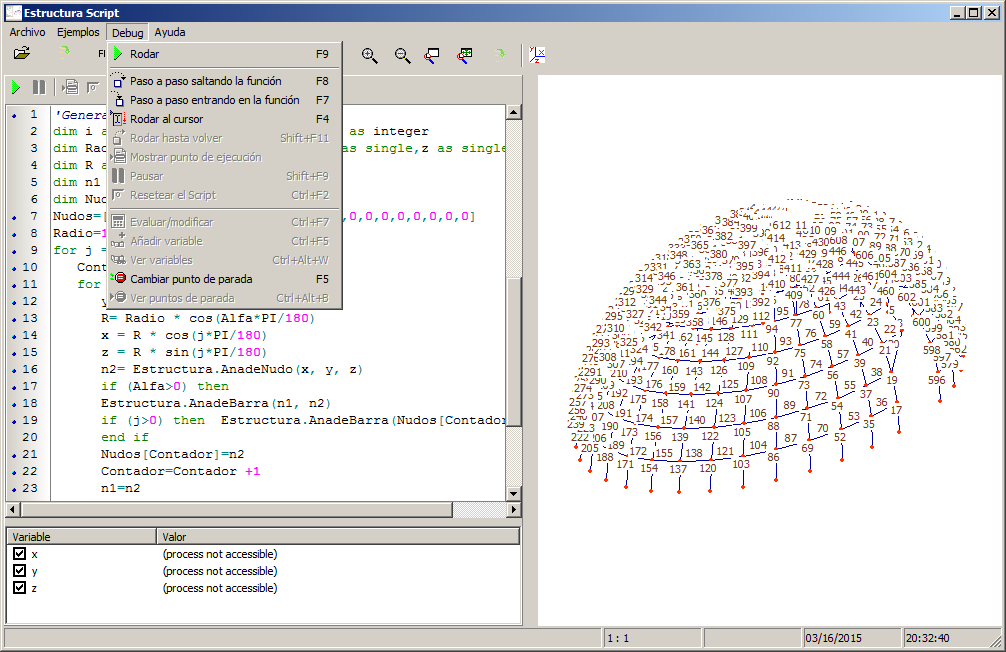

This is now possible with the “EstructuraScript” application, which lets you do this and much more, as you can also run your scripts step by step and debug the values of the variables.
The program is free and allows export to Metalpla and/or Estrumad.
If you would like to try it, just send an email to metalpla@metalpla.com to request your copy of the program

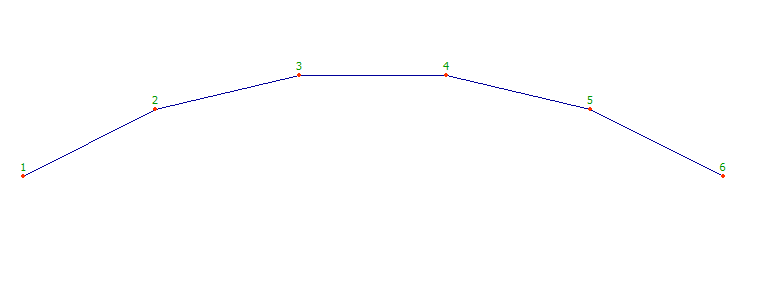

For example, to generate the arch in the following figure:

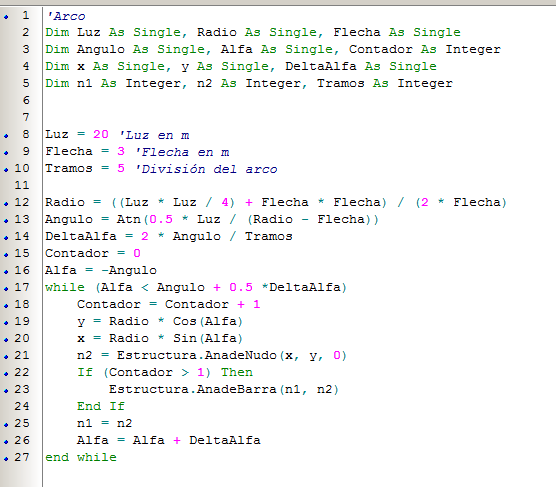

It is as simple as entering:
